Proposed Draft Unicode Technical Report #27

Unicode 3.1

Summary

This document defines Version 3.1 of the Unicode Standard. It overrides certain features of Unicode 3.0.1, and adds a large numbers of coded characters. This draft is for review with the intention of it becoming a Unicode Standard Annex.

Status

This document has been approved by the Unicode Technical Committee for public review as a Proposed Draft Unicode Technical Report. Publication does not imply endorsement by the Unicode Consortium. This is a draft document which may be updated, replaced, or superseded by other documents at any time. This is not a stable document; it is inappropriate to cite this document as other than a work in progress.

A list of current Unicode Technical Reports is found on http://www.unicode.org/unicode/reports/. For more information about versions of the Unicode Standard, see http://www.unicode.org/unicode/standard/versions/.

Contents

• 1 Description
• 2 Notational Changes for the Standard
• 3 Conformance
• 4 Guidelines
• 5 Block Descriptions
• 6 Code Charts
• 7 Errata
• 8 Unicode Character Database Changes
• 9 Relation to 10646
• 10 References and Sources

1 Description

Unicode 3.1 is a minor version of the Unicode Standard. It overrides certain features of Unicode 3.0.1, and adds a large number of coded characters.

New Character Allocations

The primary feature of Unicode 3.1 is the addition of 44,946 new encoded characters. These characters cover several historic scripts, several sets of symbols, and a very large collection of additional CJK ideographs.

For the first time, characters are encoded beyond the original 16-bit codespace or Basic Multilingual Plane (BMP or Plane 0). These new characters, encoded at code positions of U+10000 or higher, are synchronized with the forthcoming standard ISO/IEC 10646-2. Unicode 3.1 and 10646-2 define three new supplementary planes:

• Supplementary Multilingual Plane (SMP) U+10000..U+1FFFF
• Supplementary Ideographic Plane (SIP) U+20000..U+2FFFF
• Supplementary Special-purpose Plane (SSP) U+E0000..U+EFFFF

The Supplementary Multilingual Plane, or Plane 1, contains several historic scripts, and several sets of symbols: Old Italic, Gothic, Deseret, Byzantine Musical Symbols, (Western) Musical Symbols, and Mathematical Alphanumeric Symbols. Together these comprise 1594 newly encoded characters.

The Supplementary Ideographic Plane, or Plane 2, contains a very large collection of additional unified Han ideographs known as Vertical Extension B, comprising 42,711 characters, as well as 542 additional CJK Compatibility ideographs.

The Supplementary Special-purpose Plane, or Plane 14, contains a set of tag characters, 97 in all.

Complete introductions to the newly encoded scripts, symbols, and new additions to Han ideographs can be found in Article 5, Block Descriptions, below.

In addition, Unicode 3.1 adds two mathematical symbols in the BMP:

U+03F4 GREEK CAPITAL THETA SYMBOL
U+03F5 GREEK LUNATE EPSILON SYMBOL

These two characters are not part of ISO/IEC 10646-2, but are among the additions in the forthcoming Amendment 1 to ISO/IEC 10646-1:2000. They are included in Unicode 3.1 so that decompositions for the Mathematical Alphanumeric Symbols can be internally consistent.

Counting the additions to the three supplementary planes and the two characters on the BMP, Unicode 3.1 adds 44,946 new encoded characters. Together with the 49,194 already existing characters in Unicode 3.0, that comes to a grand total of 94,140 encoded characters in Unicode 3.1.

Of those 94,140 characters, 70,207 are unified Han ideographs, and an additional 832 are CJK Compatibility ideographs -- slightly more than 75% of the encoded characters in the standard.

In addition, 32 more code points have been allocated as noncharacters. For more information, see Article 3, Conformance.

See Article 6, Code Charts, for links to online charts of the new characters for Unicode 3.1.

Additional Features of Unicode 3.1

Unicode 3.1 also features corrected contributory data files, to bring the data files up to date against the much expanded repertoire of characters. A summary of the new data files and changes to old data files can be found in Article 8, Unicode Character Database Changes. A complete specification of the contributory data files constituting the Unicode Standard, Version 3.1 can be found in Enumerated Versions.

All errata and corrigenda to Unicode 3.0 and Unicode 3.0.1 are included in this specification. Major corrigenda and other changes having a bearing on conformance to the standard are listed in Article 3, Conformance. Other minor errata are listed in Article 5, Errata.

Most notable among the corrigenda to the standard is a tightening of the definition of UTF-8, to eliminate a possible security issue with non-shortest-form UTF-8.

Conventions Used in this Document

The sections of this document are referred to as "articles" to prevent confusion with references to sections of The Unicode Standard, Version 3.0. The word "section" always refers to sections of The Unicode Standard, Version 3.0. Page numbers also refer to The Unicode Standard, Version 3.0.

New or replacement text for the standard is indicated with underlined text, when this new text is a corrigendum of an existing section of the standard.

Deleted text from the standard is indicated with struck-through text.

In instances where entire new sections or subsections are to be added to the standard, as for the block descriptions for newly encoded scripts or symbol sets, new section numbers are provided that interleave reasonably with the existing sections of the published Unicode 3.0 book. And for these added sections, the text is not underlined, since the entire sections are new.

2 Notational Changes for the Standard

Section 0.2 Notational Conventions, page xxviii: change the description of the U+ notation to read:

In running text, an individual Unicode code point can be expressed as U+n, where n is from four to six hexadecimal digits, using the digits 0-9 and A-F (for 10 through 15, respectively). There should be no leading zeros, unless the codepoint would have fewer than four hexadecimal digits; for example, U+0001, U+0012, U+0123, U+1234, U+12345, U+102345.

Section 0.2 Notational Conventions, page xxviii: replace the paragraph starting "A sequence of characters" with the following text:

A sequence of characters may be represented by a comma-delimited list, set off by angle brackets. The characters in such a list may be represented by generic short names, such as "<a, grave>", when their identity is clear from context. They may also be represented by Unicode values, using the U+ notation, such as "<U+0061, U+0300>". In the latter case, when Unicode values are used to make the exact code positions being referenced clear, the sequence notation is termed a Unicode Sequence Identifier (USI). Unicode Sequence Identifiers are a minimum of two characters long.

In contrast to sequences of characters, a sequence of one or more code units may be represented by a list set off by angle brackets, but without comma delimitation. For example, the notation "<nn nn nn nn>" represents a sequence of bytes, as for the UTF-8 encoding form of a Unicode character. The notation "<nnnn nnnn>" represents a sequence of 16-bit code units, as for the UTF-16 encoding form of a Unicode character. In the text, the angle brackets are occasionally omitted from this notation when the usage is clear in context.

3 Conformance

There are three major changes to the conformance clauses of the Unicode Standard for Version 3.1. The first of these is the addition of new noncharacters and a clarification regarding noncharacter status. The second is a major corrigendum to the definition of UTF-8 to address security issues. The third change is that UTF-32 is now part of the standard. There are additional normative changes in Unicode 3.1 that have implications for conformance. These are described in Article 8, Unicode Character Database Changes, and in Section 13.2 Layout Controls of Article 5, Block Descriptions.

Noncharacters

There are 34 distinguished code points in Unicode 3.0 that are characterized as noncharacters. Unicode 3.1 adds an additional 32 noncharacters. To clarify the status of all 66, a definition (page 41) is added, and conformance rules C5 and C10 (pages 38, 39) are amended as follows:

D7b	Noncharacter: a code point that is permanently reserved for internal use, and that should never be interchanged. In Unicode 3.1, these consist of the values U+nFFFE and U+nFFFF (where n is from 0 to 1016) and the values U+FDD0..U+FDEF.

• For more information, see the discussions under "Special Noncharacter Values" in Section 2.7 Special Character and Noncharacter Values, and under "Noncharacters" in Section 13.6 Specials.
• These code points are permanently reserved as noncharacters. In the future, it is possible that additional code points may be specified to represent noncharacters.

C5	A process shall not interpret either U+FFFE or U+FFFF a noncharacter code point as an abstract character.

• The code points may be used internally, such as for sentinel values or delimiters, but should not be exchanged publicly.

C10

A process shall make no change in a valid coded character representation other than the possible replacement of character sequences by their canonical-equivalent sequences or the deletion of noncharacter code points, if that process purports not to modify the interpretation of that coded character sequence.

• If a noncharacter which does not have a specific internal use is unexpectedly encountered in processing, an implementation may signal an error or delete or ignore the noncharacter. If these options are not taken, the noncharacter should be treated as an unassigned code point.

UTF-8 Corrigendum

The current conformance clause C12 in The Unicode Standard, Version 3.0 forbids the generation of "non-shortest form" UTF-8, and forbids the interpretation of illegal sequences, but not the interpretation of "non-shortest form". Where software does interpret the non-shortest forms, security issues can arise. For example:

• Process A performs security checks, but does not check for non-shortest forms.
• Process B accepts the byte sequence from process A, and transforms it into UTF-16 while interpreting non-shortest forms.
• The UTF-16 text may then contain characters that should have been filtered out by process A.

To address this issue, the Unicode Technical Committee has modified the definition of UTF-8 to forbid conformant implementations from interpreting non-shortest forms for BMP characters, and clarified some of the conformance clauses.

These modifications make use of updated notation: see the Glossary for any unfamiliar terms.

Change C12 to the following:

C12

(a) When a process generates data in a Unicode Transformation Format, it shall not emit ill-formed byte code unit sequences. (b) When a process interprets data in a Unicode Transformation Format, it shall treat illegal byte code unit sequences as an error condition. (c) A conformant process shall not interpret illegal UTF code unit sequences as characters. (d) Irregular UTF code unit sequences shall not be used for encoding any other information.

Add the following notes after C12:

• The definition of each UTF specifies the illegal code unit sequences in that UTF. For example, the definition of UTF-8 (D36) specifies that code unit sequences such as <C0, AF> are illegal.
• Internally, a particular function might be used that does not check for illegal code unit sequences. However, a conformant process can use that function only on data that has already been certified to not contain any illegal code unit sequences.
• Processes that require unique representation must not interpret irregular UTF code unit sequences as characters. They may, for example, reject or remove those sequences.
• Processes may transform irregular code unit sequences into the equivalent well-formed code unit sequences.
• Conformant processes cannot interpret illegal code unit sequences. However, the conformance clauses do not, for example, prevent utility programs from operating on "mangled" text. For example, a UTF-8 file could have had CRLF sequences introduced at every 80 bytes by a bad mailer program. This could result in some UTF-8 byte sequences being interrupted by CRLFs, producing illegal byte sequences. This mangled text is no longer UTF-8. It is permissible for a conformant program to repair such text, recognizing that the mangled text was originally well-formed UTF-8 byte sequences. However, such repair of mangled data is a special case, and must not be used in circumstances where it would cause security problems.

For example, UTF-8 allows nonshortest code value sequences to be interpreted: a UTF-8 conformant mayt map the code value sequence C0 80 (11000000₂ 10000000₂) to the Unicode value U+0000, even though a UTF-8 conformant process shall never generate that code value sequence -- it shall generate the sequence 00 (00000000₂) instead.

Modify D36 as follows, and add a note:


D36

(a) UTF-8 is the Unicode Transformation Format that serializes a Unicode code point as a sequence of one to four bytes, as specified in Table 3.1, UTF-8 Bit Distribution. (b) An illegal UTF-8 code unit sequence is any byte sequence that does not match the patterns listed in Table 3.1B, Legal UTF-8 Byte Sequences. (c) An irregular UTF-8 code unit sequence is a six-byte sequence where the first three bytes correspond to a high surrogate, and the next three bytes correspond to a low surrogate. As a consequence of C12, these irregular UTF-8 sequences shall not be generated by a conformant process.

• In UTF-8, <004D, 0061, 0072, 006B> is serialized as <4D 61 72 6B>.
• The problematic "non-shortest form" byte sequences in UTF-8 were those where BMP characters could be represented in more than one way. These sequences are illegal, since they are not allowed by Table 3.1B.

Retain the paragraph and table immediately below D36, but replace the last sentence in the paragraph.

Table 3.1 specifies the bit distribution from a Unicode character (or surrogate pair) into the one- to four-byte values of the corresponding UTF-8 sequence. Note that the four-byte form for surrogate pairs involves an addition of 10000₁₆, to account for the starting offset to the encoded values referenced by surrogates. For a discussion of the difference in the formulation of UTF-8 in ISO/IEC 10646, see Section C.3, UCS Transformation Formats. The definition of UTF-8 in Annex D of ISO/IEC 10646-1:2000 also allows for the use of five- and six-byte sequences to encode characters that are outside the range of the Unicode character set; those five- and six-byte sequences are illegal for the use of UTF-8 as a transformation of Unicode characters.

Table 3.1. UTF-8 Bit Distribution

Scalar Value	UTF-16	1st Byte	2nd Byte	3rd Byte	4th Byte
00000000 0xxxxxxx	00000000 0xxxxxxx	0xxxxxxx
00000yyy yyxxxxxx	00000yyy yyxxxxxx	110yyyyy	10xxxxxx
zzzzyyyy yyxxxxxx	zzzzyyyy yyxxxxxx	1110zzzz	10yyyyyy	10xxxxxx
000uuuuu zzzzyyyy yyxxxxxx	110110ww wwzzzzyy 110111yy yyxxxxxx	11110uuu	10uuzzzz	10yyyyyy	10xxxxxx

• Where uuuuu = wwww + 1 (to account for addition of 10000₁₆ as in Section 3.7, Surrogates).

Delete the two text paragraphs after Table 3.1. (The relevant portions have been elevated into definitions or conformance clauses.)

When converting a Unicode scalar value to UTF-8, the shortest form that can represent those values shall be used. This practice preserves uniqueness of encoding. For example, the Unicode binary value <0000000000000001> is encoded as <00000001>, not as <11000000 10000001>. The latter is an example of an irregular UTF-8 byte sequence. Irregular UTF-8 sequences shall not be used for encoding any other information.

When converting from UTF-8 to a Unicode scalar value, implementations do not need to check that the shortest encoding is being used. This simplifies the conversion algorithm.

Replace them by the following table and text:


Table 3.1B. lists all of the byte sequences that are legal in UTF-8. A range of byte values such as A0..BF indicates that any byte from A0 to BF (inclusive) is legal in that position. Any byte value outside of the ranges listed is illegal. For example, the byte sequence <C0 AF> is illegal since C0 is not legal in the 1st Byte column. The byte sequence <E0 9F 80> is illegal since in the row where E0 is legal as a first byte, 9F is not legal as a second byte. The byte sequence <F4 80 83 92> is legal, since every byte in that sequence matches a byte range in a row of the table (the last row).

• Cases where a trailing byte range is not 80..BF are underlined in the table to draw attention to them. These occur only in the second byte of a sequence.

Add to Appendix C: Relationship to ISO/IEC 10646, Section C.3: UCS Transformation Formats, at the end of the subsection UTF-8:

The definition of UTF-8 in Annex D of ISO/IEC 10646-1:2000 also allows for the use of five- and six-byte sequences to encode characters that are outside the range of the Unicode character set; those five- and six-byte sequences are illegal for the use of UTF-8 as a transformation of Unicode characters. ISO/IEC 10646 does not allow mapping of unpaired surrogates, nor U+FFFE and U+FFFF (but it does allow other noncharacters).

Status of UTF-32

Unicode Technical Report #19, UTF-32, has been elevated to the status of a Unicode Standard Annex, making UTF-32 officially a part of the Unicode Standard. UAX #19 adds specific definition clauses to Section 3.8, Transformations, of The Unicode Standard, Version 3.0. See UAX #19 for the exact definitions of UTF-32 as well as a discussion of the relation of UTF-32 to ISO/IEC 10646 and UCS-4.

Effectively, the Unicode Standard can be conceived of as providing a unique encoding for each abstract character. That encoding is referred to in the standard as the "Unicode scalar value". The Unicode scalar value is what is used consistently in the character charts and the Unicode Character Database files to unambiguously identify a particular encoded character in the standard.

With the addition of UTF-32, the Unicode Standard now has three sanctioned encoding forms: UTF-8, UTF-16, and UTF-32. These are the 8-bit, 16-bit, and 32-bit forms, respectively, for representing the Unicode scalar values in particular implementations of the standard.

Considerations of byte-order serialization lead to a further subdivision of the encoding forms into 5 sanctioned encoding schemes for the Unicode Standard: UTF-8, UTF-16BE, UTF-16LE, UTF-32BE, and UTF-32LE.

Because UTF-32 is a fixed-width, 32-bit encoding form, the numerical value of a Unicode character in UTF-32 is always precisely identical to the Unicode scalar value.

The encoding scheme UTF-32BE (UTF-32 serialized as bytes in most significant byte first order) is structurally the same as UCS-4, as defined in ISO/IEC 10646-1:2000.

See also Unicode Technical Report #17, Character Encoding Model, for a discussion of the general framework for understanding the Unicode character encoding and its relationship to the Unicode Transformation Formats.

4 Guidelines

The following text amends portions of Chapter 5, Implementation Guidelines in The Unicode Standard, Version 3.0.

Unassigned Code Points

Section 5.3, Unknown and Missing Characters: Unassigned and Private Use Character Codes, pages108-109: add the following to the end of the subsection.

In practice, applications must deal with unassigned code points or unknown private use characters. This may occur, for example, when the application is handling text that originated on a system implementing a later release of Unicode, with additional assigned characters. To work properly in implementations, unassigned code points must be given default properties as if they were characters, since various algorithms require properties to be assigned to every character in order to function at all. These properties are not uniform across all unassigned code points, since certain ranges of code points need different properties to maximize compatibility.

Normally, code points outside the repertoire of supported characters would be displayed with a fall-back glyph, such as a black box. However, format and control characters must not have visible glyphs (although they may have an effect on other characters in display). These characters are also ignored except with respect to specific, defined processes: for example, ZERO WIDTH NON-JOINER is ignored in collation. To allow a greater degree of compatibility across versions of the standard, the ranges U+2060..U+2069 and U+E0000..U+E1000 are reserved for future format and control characters (General Category = Cf). Unassigned code points in these ranges should be ignored in processing and display.

The Unicode Bidirectional Algorithm assigns a Bidirectional Category to unassigned code points based on the expected direction of characters to be added in the future. For more information, see Bidirectional Character Types in Unicode Standard Annex #9: The Bidirectional Algorithm.

Unicode Standard Annex #14: Line Breaking Properties supplies the property "XX" for all unassigned code points in Definitions.

In determining character widths for East Asian display, Unicode Standard Annex #11: East Asian Width includes a section on Unassigned and Private Use characters.

In Unicode Standard Annex #15, Unicode Normalization Forms, unassigned code points are given the Canonical Combining Class = 0, and no decomposition mapping.

Identifiers

Section 5.16 Identifiers: Specific Character Additions, page 134: the subsection name is changed to Specific Character Adjustments, and the following note is added:

Note: a useful set of characters to consider for exclusion from identifiers consists of all characters whose compatibility mappings have a <font> tag.

Section 5.11: Language Tagging

Section 5.11, Language Tagging in Plain Text, page 114: delete the following paragraph:

For interchange purposes, it is becoming common to use tagged information, which is embedded in the text. Unicode Technical Report #7, "Plane 14 Characters for Language Tags," which is found on the CD-ROM or in its up-to-date version on the Unicode Web site, provides a proposed mechanism for representing language tags. Like most tagging mechanisms, these language tags are stateful: a start tag establishes an attribute for the text, and an end tag concludes it.

The subsection Working with Language Tags, pages 114-115, has been moved to the newly created Section 13.7, Tag Characters, which is part of Article 5, Block Descriptions. This is because its recommendations are specific to the tag characters described there.

5 Block Descriptions

Note: The numbering used here for block descriptions and revised text follows The Unicode Standard, Version 3.0 for ease of cross-reference.

6.1 General Punctuation (revision)

Numeric Separators

Section 6.1 General Punctuation, Punctuation: U+0020-U+00BF, page 149: the following note is added:

Note: any of the characters U+002C, U+002E, U+060C, U+066B, or U+066C (and possibly others) can be used as numeric separator characters, depending on the locale and user customizations.

7.5 Georgian (revision)

Georgian: U+10A0–U+10FF

The Georgian script is used primarily for writing the Georgian language and its dialects. It is currently used for the Svan and Mingrelian languages. In the past it was used for Abkhaz and other languages of the Caucasus.

The Georgian script is used primarily for writing the Georgian language and its dialects, but it was also used in the past for Abkhaz and other archaic languages of the Caucasus.

Script Forms. The modern Georgian script is usually written in a style called mkhedruli (military). It arose about the tenth century as the secular derivative of a style called khutsuri (ecclesiastical), which encompasses a scriptural form nuskhuri and an original inscriptional form asomtavruli. Although no longer used in most modern texts, the khutsuri style is still used for liturgical purposes. Paleographic research has established an evolution of forms over time in the order asomtavruli, nuskhuri, mkhedruli, but details of the evolutionary pathways remain uncertain.

Case Forms. The Georgian alphabet is fundamentally caseless, and is used as such in most texts. The Unicode range U+10D0..U+10FF represents the basic Georgian alphabet, which may appear in any of the script forms mkhedruli, nuskhuri, asomtavruli mentioned above. However, possibly owing to the influence of case forms in other alphabets, Georgian may also be written with uppercase capital letters. In this typographic departure, it is usually the asomtavruli forms that are pressed into service to represent uppercase letters, while the lowercase might be represented by mkhedruli or nuskhuri. In such dual-case Georgian usage, the Unicode range U+10A0..U+10CF is used to encode the uppercase forms, and the basic alphabetic range U+10D0..U+10FF is considered to be lowercase.

Georgian Paragraph Separator. The Georgian paragraph separator has a distinct representation, so it has been separately encoded as U+10FB. It visually marks a paragraph end, but it must be followed by a newline character as described in Unicode Standard Annex #13, Unicode Newline Guidelines, to cause a paragraph termination.

Other Punctuation. For the Georgian full stop, use U+0589 ARMENIAN FULL STOP.

7.10 Old Italic

Old Italic: U+10300–U+1032F

The Old Italic script unifies a number of related historical alphabets located on the Italian peninsula. Some of these were used for non-Indo-European languages (Etruscan and probably North Picene), some for various Indo-European languages belonging to the Italic branch (Faliscan and members of the Sabellian group, including Oscan, Umbrian, and South Picene), and one for a separate Indo-European branch (Messapic). The ultimate source for the alphabets in ancient Italy is Euboean Greek used at Ischia and Cumae in the bay of Naples in the eighth century BCE. Unfortunately, no Greek abecedaries from southern Italy have survived. Faliscan, Oscan, Umbrian, North Picene, and South Picene all derive from an Etruscan form of the alphabet. Strictly speaking, the Messapic alphabet was derived directly from Greek sources, not from an Etruscan prototype. But structural similarities in the Old Italic and early Greek alphabets as well as practical considerations of scholarly interest indicate that Messapic should be unified with Old Italic, rather than Greek.

There are some 10,000 inscriptions in Etruscan. By the time of the earliest Etruscan inscriptions, circa 700 BCE, local distinctions are already found in the use of the alphabet. Three major stylistic divisions are identified: the Northern, Southern, and Caere/Veii. Use of Etruscan can be divided into two stages, owing largely to the phonological changes that occurred: the "archaic Etruscan alphabet", used from the seventh to the fifth centuries BCE, and the "neo-Etruscan alphabet", used from the fourth to the first centuries BCE. Glyphs for eight of the letters differ between the two periods; additionally, neo-Etruscan abandoned the letters KA, KU, and EKS.

The unification of these alphabets into a single Old Italic script requires language-specific fonts because the glyphs most commonly used may differ somewhat depending on the language being represented.

Most of the languages have added characters to the common repertoire: Etruscan and Faliscan add LETTER EF; Oscan adds LETTER EF, LETTER II, and LETTER UU; Umbrian adds LETTER EF, LETTER ERS, and LETTER CHE; North Picene adds LETTER UU; and Adriatic adds LETTER II and LETTER UU.

The Latin script itself derives from a south Etruscan model, probably from Caere or Veii, around the mid-seventh century BCE or a bit earlier, but because there are significant differences between Latin and Faliscan of the seventh and sixth centuries BCE in terms of formal differences (glyph shapes, directionality) and differences in the repertoire of letters used this warrants a distinctive character block. Fonts for early Latin should use the uppercase code positions U+0041..U+005A. The unified Alpine script, which includes the Venetic, Rhaetic, Lepontic, and Gallic alphabets, has not yet been proposed for addition to the Unicode Standard but is considered to differ enough from both Old Italic and Latin to warrant independent encoding. The Alpine script is thought to be the source for Runic, which is encoded at U+16A0..U+16FF.

Character names assigned to the Old Italic block are unattested but have been reconstructed according to the analysis made by Geoffrey Sampson. While the Greek character names (ALPHA, BETA, GAMMA, etc.) were borrowed directly from the Phoenician names (modified to Greek phonology), the Etruscans are thought to have abandoned the Greek names in favor of a phonetically-based nomenclature, where stops were pronounced with a following -e sound, and liquids and sibilants (which can be pronounced more or less on their own) were pronounced with a leading e- sound (so [k], [d] became [ke:], [de:] but [l:], [m:] became [el], [em]. It is these names which were borrowed by the Romans when they took their script from the Etruscans; evidence for this can be found in the word elementum, which has among its meanings "letter of the alphabet."

Directionality. Most early Etruscan texts have right-to-left directionality. From the third century BCE, left-to-right texts appear, showing the influence of Latin. Oscan, Umbrian, and Faliscan also generally have right-to-left directionality. Boustrophedon appears rarely, and not especially early (for instance, the Forum inscription dates to 550-500 BCE). Despite this, for reasons of implementation simplicity, many scholars prefer left-to-right presentation of texts, as this is also their practice when transcribing the texts into Latin script. Accordingly, the Old Italic script has a default directionality of strong left-to-right in this standard. When directional overrides are used to produce right-to-left presentation, the glyphs in fonts must be mirrored from the glyphs shown in the tables below.

Punctuation. The earliest inscriptions are written with no space between words in what is called scriptio continua. There are numerous Etruscan inscriptions with dots separating word forms, attested as early as the second quarter of the seventh century BCE. This punctuation is sometimes, but rarely, used to separate syllables rather than words. From the sixth century BCE words were often separated by one, two, or three dots spaced vertically above each other.

Numerals. Etruscan numerals are not well-attested in the available materials, but are employed in the same fashion as Roman numerals. Several additional numerals are attested, but as their use is at present uncertain, they are not yet encoded in the Unicode Standard.

Glyphs. The default glyphs in the code charts are based on the most common shapes found for each letter. Most of these are similar to the Marsiliana abecedary (mid-seventh century BCE). Note that the phonetic values for U+10317 OLD ITALIC LETTER EKS [ks] and U+10319 OLD ITALIC LETTER KHE [kh] show the influence of western, Euboean Greek; eastern Greek has U+03A7 GREEK CAPITAL LETTER CHI [x] and U+03A8 GREEK CAPITAL LETTER PSI [ps], instead.

The geographic distribution of the Old Italic script is shown in the figure below. In the figure, the approximate distribution of ancient languages which used Old Italic alphabets is shown in white. Areas for ancient languages which used other scripts are shown in gray, and the labels for those languages are shown in oblique type. In particular, note that the ancient Greek colonies of the southern Italian and the Sicilian coasts used the Greek script proper. And languages such as Ligurian, Venetic, etc., of the far north of Italy made use of alphabets of the Alpine script. Rome, of course, is also shown in gray, since Latin was written with the Latin alphabet, now encoded in the Latin script.

7.11 Gothic

Gothic: U+10330–U+1034F

The Gothic script was devised in the fourth century by the Gothic bishop, Wulfila (311–383 CE), to provide his people with a written language and a means of reading his translation of the Bible. Written Gothic materials are largely restricted to fragments of Wulfila's translation of the Bible; these fragments are of considerable importance in New Testament textual studies. The chief manuscript, kept at Uppsala, is the Codex Argenteus or "the Silver Book," which is partly written in gold on purple parchment. Gothic is an East Germanic language; this branch of Germanic has died out and thus the Gothic texts are of great importance in historical and comparative linguistics. Wulfila appears to have used the Greek script as a source for the Gothic, as can be seen from the basic alphabetical order. Some of the character shapes suggest Runic or Latin influence, but this is apparently coincidental.

Diacritics. The tenth letter U+10339 GOTHIC LETTER EIS is used with U+0308 COMBINING DIAERESIS when word-initial, when syllable-initial after a vowel, and in compounds with a verb as second member as shown below:

To indicate contractions or omitted letters, U+0305 COMBINING OVERLINE is used.

Numerals. Gothic letters, like those of other early Western alphabets, can be used as numbers; two of the characters have only a numeric value, and are not used alphabetically. To indicate numeric use of a letter, it is either flanked on either side by U+00B7 MIDDLE DOT, or it is followed by both U+0304 COMBINING MACRON and U+0331 COMBINING MACRON BELOW as shown in the following example:

Punctuation. Gothic manuscripts are written with no space between words in what is called scriptio continua. Sentences and major phrases are often separated by U+0020 SPACE, U+00B7 MIDDLE DOT or U+003A COLON.

10.1 Han (new subsections)

CJK Unified Ideographs Extension B: U+20000–U+2A6D6

The ideographs in the CJK Unified Ideographs Extension B represent an additional set of 42,711 ideographs beyond the 27,484 included in The Unicode Standard, Version 3.0.

Section 10.1, Han in The Unicode Standard describes the basic principles underlying the selection, organization, and unification of Han ideographs. These same principles apply to the ideographs in the CJK Unified Ideographs Extension B block.

The ideographs in this block are derived from the six IRG sources: G-source, H-source, T-source, J-source, K-source, and V-source. There is no U-source for ideographs in the CJK Unified Ideographs Extension B block. The H-source represents a new IRG source beyond the ones used for earlier blocks of Han ideographs and is used for characters derived from standards published by the Hong Kong SAR.

The standards and other references associated with these six IRG sources are listed in the table below.

As with other Han ideograph blocks, the ideographs in the CJK Unified Ideographs Extension B block are derived from versions of national standards submitted to the IRG by its members. They may in some instances be slightly different from published versions of these standards.

As with other CJK unified ideographs, the names for these characters are algorithmic. Thus, CJK UNIFIED IDEOGRAPH-20000 is the name for the ideograph at U+20000.

These ideographs may be used in Ideographic Description Sequences (see The Unicode Standard, Version 3.0, Section 10.1, Han, pages 268–271).

CJK Compatibility Ideographs Supplement: U+2F800–U+2FA1D

This block consists of additional compatibility ideographs required for round-trip compatibility with CNS 11643-1992, planes 3, 4, 5, 6, 7, and 15. They should not be used for any other purpose and, in particular, may not be used in Ideographic Description Sequences.

The names for the compatibility ideographs are also algorithmic. Thus, the name for the compatibility ideograph U+2F800 is CJK COMPATIBILITY IDEOGRAPH-2F800.

11.5 Deseret

Deseret: U+10400-U+1044F

Deseret is a phonetic alphabet devised to write the English language. It was originally developed in the 1850s at the University of Deseret, now the University of Utah. It was promoted by The Church of Jesus Christ of Latter-day Saints, also known as the "Mormon" or LDS Church, under Church President Brigham Young (1801-1877). The name Deseret is taken from a word in the Book of Mormon defined to mean "honeybee" and reflects the LDS use of the beehive as a symbol of cooperative industry. Most literature about the script treats the term Deseret Alphabet as a proper noun and capitalizes it as such.

The alphabet was designed by George D. Watt, a convert to Mormonism in 1837. It seems likely that he used Sir Isaac Pitman's 1847 English Phonotypic Alphabet as the model for the Deseret Alphabet.

The Church commissioned two typefaces and published four books using the Deseret Alphabet. The Church-owned Deseret News also published passages of scripture using the alphabet on occasion. In addition, some historical records, diaries, and other materials were handwritten using this script. It nonetheless failed to gain wide acceptance and was not actively promoted after 1869. Today, the Deseret Alphabet remains of interest primarily to historians and hobbyists.

Letter Names and Shapes. Pedagogical materials produced by the LDS Church gave names to all of the non-vowel letters and indicated the vowel sounds with English examples. In the Unicode Standard, the spelling of the non-vowel letter names has been modified to clarify their pronunciations, and the vowels have been given names which emphasize the parallel structure of the two vowel runs.

The glyphs used in the Unicode Standard are derived from the second typeface commissioned by the LDS Church and represent the shapes most commonly found. Alternate glyphs are found in the first typeface and in some instructional material.

Structure. The script consists of thirty-eight letters. The alphabet is bicameral; capital and small letters differ only in size and not in shape. The order of the letters is phonetic: letters for similar classes of sound are grouped together. In particular, most consonants come in unvoiced/voiced pairs.

Sorting. The order of the letters in the Unicode Standard is the one used in all but one of the nineteenth-century descriptions of the alphabet. The exception is one in which the letters WU and YEE are inverted. The order YEE-WU follows the order of the "coalescents" in Pitman's work; the order WU-YEE appears in a greater number of Deseret materials however, and has been followed here.

There is no evidence that any early materials written using the Deseret Alphabet were alphabetized. It is assumed that sorting and collation would have been based directly on the order of the letters within the alphabet.

Typographic Conventions. The Deseret Alphabet is written from left to right. Punctuation, capitalization, and digits are the same as in English. All words are written phonetically with the exception of short words that have pronunciations equivalent to letter names.

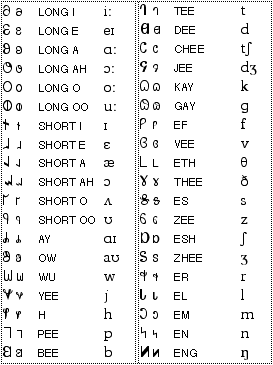

Phonetics. An approximate IPA transcription of the sounds represented by the Deseret Alphabet is as follows. Pitman's Phonotypic Alphabet is also given.

12.2 Mathematical Alphanumeric Symbols (new subsection)

Mathematical Alphanumeric Symbols: U+1D400–U+1D7FF

The Mathematical Alphanumeric Symbols block contains a large extension of letterlike symbols used in mathematical notation, typically for variables. The characters in this block are intended for use only in mathematical or technical notation; they are not intended for use in non-technical text. When used with markup languages, for example with MathML  Mathematical Markup Language (MathML™) the characters are expected to be used directly, instead of indirectly via entity references or by composing them from base letters and style markup.

Words Used as Variables. In some specialties, whole words are used as variables, not just single letters. For these cases, style markup is preferred because in ordinary mathematical notation the juxtaposition of variables generally implies multiplication, not word formation as in ordinary text. Markup not only provides the necessary scoping in these cases, it also allows the use of a more extended alphabet.

Mathematical Alphabets

Basic Set of Alphanumeric Characters. Mathematical notation uses a basic set of mathematical alphanumeric characters which consists of:

• the set of basic Latin digits (0 – 9)
• the set of basic upper- and lowercase Latin letters (a – z, A – Z)
• the uppercase Greek letters A - Ω (U+0391..U+03A9), plus the nabla Ñ (U+2207) and the variant of theta Θ given by U+03F4
• the lowercase Greek letters a - w (U+03B1..U+03C9), plus the partial differential sign ¶ (U+2202) and the six glyph variants of e, q, κ, φ, ρ, and π, given by U+03F5, U+03D1, U+03F0, U+03D5, U+03F1, and U+03D6.

Standard mathematical notation uses the digits 0-9 (U+0031..U+0039), but not any of the sets of native digits.

Only unaccented forms of the letters are used for mathematical notation, because general accents such as the acute accent would interfere with common mathematical diacritics. Examples of common mathematical diacritics that can interfere with general accents are the circumflex, macron, or the single or double dot above, the latter two of which are used in physics to denote a derivative with respect to the time variable. Mathematical symbols with diacritics are always represented by combining character sequences.

For some characters in the basic set of Greek characters, two variants of the same character are included. This is because they can appear in the same mathematical document with different meanings, even though they would have the same meaning in Greek text.

Additional Characters. In addition to this basic set, mathematical notation also uses the four Hebrew-derived characters (U+2135..U+2138). There are also known occasions of the use of U+0428 CYRILLIC CAPITAL LETTER SHA or U+306E HIRAGANA LETTER NO.

Semantic Distinctions. Mathematical notation requires a number of Latin and Greek alphabets that initially appear to be mere font variations of one another. For example, the letter H can appear as plain, or upright (H), bold (H), italic (H) and script (H). However, in any given document, these characters have distinct, and usually unrelated mathematical semantics. For example, a normal H represents a different variable from a bold H, etc. If these attributes are dropped in plain text, the distinctions are lost and the meaning of the text is altered. Without the distinctions, the the well-known Hamiltonian formula

H = òdt(eE² + mH²),

turns into this integral equation in the variable H

By encoding a separate set of alphabets, it is possible to preserve such distinctions in plain text.

Mathematical Alphabets. The alphanumeric symbols encountered in mathematics and encoded in the Unicode Standard are given in the following table:

* Some of these alphabets have characters in the BMP as noted in the following section.

The plain letters have been unified with the existing characters in the Basic Latin and Greek blocks. There are 25 double-struck, italic, Fraktur and script characters that already exist in the Letterlike Symbols block (U+2100..U+214F). These are explicitly unified with the characters in this block and corresponding holes have been left in the mathematical alphabets.

The alphabets in this block encode only semantic distinction, but not which specific font will be used to supply the actual plain, script, Fraktur, double-struck, sans-serif, or monospace glyphs. Especially the script and double-struck styles can show considerable variation across fonts. Mathematical Alphanumeric Symbols are not to be used for non-mathematical styled text.

Compatibility Decompositions. All mathematical alphanumeric symbols have compatibility decompositions to the base Latin and Greek letters -- folding away such distinctions, however, is usually not desirable as it loses the semantic distinctions for which these characters where encoded. See Unicode Standard Annex #15, Unicode Normalization Forms for more information.

Fonts Used for Mathematical Alphabets

Mathematicians place strict requirements on the specific fonts being used to represent mathematical variables. Readers of a mathematical text need to be able to distinguish single letter variables from each other, even when they don't appear in close proximity. They must be able to recognize the letter itself, whether it is part of the text or is a mathematical variable, and lastly which mathematical alphabet it is from.

Common mathematical variables use the italics alphabet, but not all italic fonts can be used successfully. In common text fonts, the italic letter v and Greek letter ν ("nu") are not very distinct. A rounded letter v like this one from Century Schoolbook is therefore preferred in a mathematical font. A font intended for mathematical variables should strive to allow a visual distinction so that variables can be reliably separated from italic text in a theorem. Some languages have common single letter words (English ‘a’, Scandinavian ‘i’, etc.), which can otherwise be easily confused with common variables.

Hard-to-distinguish Letters. Not all sans-serif fonts allow an easy distinction between lowercase ‘l’, and uppercase ‘I’ and not all monospaced fonts allow a distinction between the letter ‘l’ and the digit ‘1’. Such fonts are not usable for mathematics. In Fraktur, the letters I and J in particular must be made distinguishable. Overburdened Black Letter forms like I and J are inappropriate. Similarly, the digit ‘0’ must be distinct from the letter ‘O’ for all mathematical alphanumeric sets. Some characters are so similar that even mathematical fonts do not attempt to provide distinguished glyphs for them. Their use is normally avoided in mathematical notation unless no confusion is possible in a given context, e.g. uppercase A and uppercase alpha (A). However, when computerizing text, it is helpful to have distinct character codes even in these cases.

Font Support for Combining Diacritics. Mathematical equations require that characters be combined with diacritics (dots, tilde, circumflex, or arrows above are common), as well as followed or preceded by super- or subscripted letters or numbers. This requirement leads to designs for italic styles that are less inclined, and script styles that have smaller overhangs and less slant than equivalent styles commonly used for text such as wedding invitations.

Typestyle for Script Characters. In some instances, a deliberate unification with a non-mathematical symbol has been undertaken; for example, U+2133 is unified with the pre-1949 symbol for the German currency unit Mark and U+2113 is unified with the common non-SI symbol for the liter. This unification restricts the range of glyphs that can be used for this character in the charts. Therefore the font used for the reference glyphs in the code charts uses a simplified ‘English Script’ style, as per recommendation by the American Mathematical Society. For consistency, other script characters in the Letterlike Symbols block are now shown in the same typestyle.

Double-struck Characters. The double-struck glyphs shown in earlier editions of the standard attempted to match the design used for all the other Latin characters in the standard, which is based on Times. The current set of fonts was prepared in consultation with the American Mathematical Society and leading mathematical publishers, and shows much simpler forms that are derived from the forms written on a blackboard. However, both serifed and non-serifed forms can be used in mathematical texts, and inline fonts are found in works published by certain publishers.

12.10 Byzantine Musical Symbols

Byzantine Musical Symbols: U+1D000–U+1D0FF

Byzantine musical notation first appeared in the seventh or eighth century CE, developing more fully by the tenth century. Byzantine Musical Symbols are chiefly used to write the religious music and hymns of the the Christian Orthodox Church, though folk music manuscripts are also known. In 1881, the Orthodox Patriarchy Musical Committee redefined some of the signs and established the New Analytical Byzantine Musical Notation System, which is in use today. About 95% of the more than 7000 musical manuscripts using this system are in Greek. Other manuscripts are in Russian, Bulgarian, Romanian, and Arabic.

Processing. Computer representation of Byzantine Musical Symbols is quite recent, although typographic publication of religious music books began in 1820. Two kinds of applications have been developed: applications to enable musicians to write the books they use, and applications which compare or convert this musical notation system to the standard Western system. (See Musical Symbols, U+1D100..U+1D1FF.)

Byzantine Musical Symbols are divided into fifteen classes according to function. Characters interact with one another in the horizontal and vertical dimension. There are three horizontal "stripes" in which various classes generally appear, and rules as to how other characters interact within them. These rules are still being specified, and at present the plain-text manipulation of Byzantine musical symbols, like that of Western musical symbols, is outside the scope of the Unicode Standard.

12.11 Musical Symbols

Musical Symbols: U+1D100-U+1D1FF

The Musical Symbols encoded in the Unicode Standard are intended to cover Western musical notation and its antecedents: mensural notation, and plainsong (or Gregorian) notation. The most comprehensive coded language in regular use for representing sound is the common musical notation (CMN) of the Western world. Western musical notation is a system of symbols that is relatively, but not completely, self-consistent and relatively stable but still, like music itself, evolving. It is an open-ended system that has survived over time partly because of its flexibility and extensibility. In the Unicode Standard, Musical Symbols have been drawn primarily from CMN. Commonly recognized additions to the CMN repertoire, such as quarter-tone accidentals, cluster noteheads, and shape-note noteheads have also been included.

"Graphical score" elements, are not included in the Musical Symbols block. These are pictographs usually created for a specific repertoire (sometimes even a single piece). Characters which have some specialized meaning in music but are found in other character sets, are also not included. These include such as numbers for time signatures and figured basses, letters for section labels and Roman numeral harmonic analysis, etc.

Musical Symbols are used worldwide in a more-or-less standard manner by a very large group of users. The symbols frequently occur in running text and may be treated as simple spacing characters with no special properties, with a few exceptions. Musical symbols are used in contexts such as theoretical works, pedagogical texts, terminological dictionaries, bibliographic databases, thematic catalogues, and databases of musical data. The Musical Symbol characters are also intended to be used within higher-level protocols, such as music description languages and file formats for the representation of musical data and musical scores.

Because of the complexities of layout and of pitch representation in general, the encoding of musical pitch is intentionally outside the scope of the Unicode Standard. The Musical Symbol block provides a common set of elements for interchange and processing. Encoding of pitch, and layout of resulting musical structure, involves not only specifications for the vertical relationship between multiple notes simultaneously, but in multiple staves, between instrumental parts, and so forth. These musical features are expected to be handled entirely in higher-level protocols making use of the proposed graphical elements. Lack of pitch encoding is not a shortcoming, but is a necessary feature of the encoding.

Three characters, U+266D MUSIC FLAT SIGN, U+266E MUSIC NATURAL SIGN, and U+266F MUSIC SHARP SIGN, which occur frequently in music notation are encoded in the Miscellaneous Symbols block (U+2600..U+267F). However, four characters also encoded in that block are to be interpreted merely as dingbats or miscellaneous symbols, not as representing actual musical notes. These are:

• U+2669 QUARTER NOTE
• U+266A EIGHTH NOTE
• U+266B BEAMED EIGHTH NOTES
• U+266C BEAMED SIXTEENTH NOTES

Processing. Most musical symbols can be thought of as simple spacing characters when used in-line within texts and examples, even though they behave in a more complex manner in full musical layout. Some characters are meant only to be combined with others to produce combined character sequences, representing musical notes and their particular articulations. Musical symbols can be input, processed, and displayed in a manner similar to mathematical symbols. When embedded in text, most of the symbols are simple spacing characters with no special properties. There are a few characters with control functions which are described below.

Input Methods. Musical symbols can be entered via standard alphanumeric keyboard, piano keyboard or other device, or by a graphical method. Keyboard input of the musical symbols may make use of techniques similar to those used for Chinese, Japanese, and Korean. In addition, input methods utilizing pointing devices or piano keyboards could be developed similar to those in existing musical layout systems. For example, within a graphical user interface, the user could choose symbols from a palette-style menu.

Directionality. There are no known bidirectional implications for Musical Symbols. When combined with right-to-left texts, in Hebrew or Arabic for example, the music notation is still written left-to-right as usual. The words are divided into syllables and placed under or above the notes in the same fashion as for Latin scripts. The individual words or syllables corresponding to each note, however, are written in the dominant direction of the script.

Control Characters. Extensive ligature-like beams are used frequently in music notation between groups of notes having short values. The practice is widespread and very regular, and is amenable to algorithmic handling. The control characters U+1D173 MUSICAL SYMBOL BEGIN BEAM and U+1D174 MUSICAL SYMBOL END BEAM can be used to indicate the extents of beam groupings, which are easily parsed. In some exceptional cases, beams are left-unclosed on one end. This can be indicated with a U+1D159 MUSICAL SYMBOL NULL NOTEHEAD character if no stem is to appear at the end of the beam.

Similarly, control codes have been provided for other connecting structures. The characters U+1D175 MUSICAL SYMBOL BEGIN TIE, U+1D176 MUSICAL SYMBOL END TIE, U+1D177 MUSICAL SYMBOL BEGIN SLUR, U+1D178 MUSICAL SYMBOL END SLUR, U+1D179 MUSICAL SYMBOL BEGIN PHRASE, and U+1D17A MUSICAL SYMBOL END PHRASE indicate the extent of these features. Like beaming, these features are easily handled in an algorithmic fashion.

These pairs of characters modify the layout and grouping of notes and phrases in full music notation. When musical examples are written or rendered in plain text without special software, the start/end control characters may be rendered as brackets or left uninterpreted.  To the extent possible, more sophisticated in-line software may interpret them in their actual control capacity, rendering slurs, beams, and so forth as appropriate.

Precomposed Note Characters. For maximum flexibility, the character set includes both precomposed note values and primitives from which complete notes may be constructed. The precomposed versions are provided mainly for convenience. The canonical equivalents for these characters are given in the Unicode Character Database, and illustrated in the table below. In this table and subsequent examples, the names of the Unicode Musical Symbol characters are abbreviated by omitting the phrases MUSICAL SYMBOL or MUSICAL SYMBOL ORNAMENT.

	Precomposed note	Equivalent to
	1D15E HALF NOTE	1D157 VOID NOTEHEAD + 1D165 COMBINING STEM
	1D15F QUARTER NOTE	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM
	1D160 EIGHTH NOTE	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D16E COMBINING FLAG-1
	1D161 SIXTEENTH NOTE	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D16F COMBINING FLAG-2
	1D162 THIRTY-SECOND NOTE	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D170 COMBINING FLAG-3
	1D163 SIXTY-FOURTH NOTE	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D171 COMBINING FLAG-4
	1D164 ONE HUNDRED TWENTY-EIGHTH NOTE	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D172 COMBINING FLAG-5

Alternative Noteheads. More complex notes built up from alternative noteheads, stems, flags, and articulation symbols are necessary for complete implementations and complex scores. Examples of their use include American shape-note and modern percussion notations. For example:

	1D147 SQUARE NOTEHEAD BLACK + 1D165 COMBINING STEM
	1D143 X NOTEHEAD + 1D165 COMBINING STEM

Augmentation Dots. Augmentation dots and articulation symbols may be appended to either the precomposed or built-up notes. In addition, augmentation dots and articulation symbols may be repeated as necessary to build a complete note symbol. Examples of the use of augmentation dots are shown in the table below.

	1D160 EIGHTH NOTE + 1D16D COMBINING AUGMENTATION DOT	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D16E COMBINING FLAG-1 + 1D16D COMBINING AUGMENTATION DOT
	1D15F QUARTER NOTE + 1D17C COMBINING STACCATO	1D158 NOTEHEAD BLACK + 1D165 COMBINING STEM + 1D17C COMBINING STACCATO
	1D160 EIGHTH NOTE + 1D16D COMBINING AUGMENTATION DOT + 1D16D COMBINING AUGMENTATION DOT + 1D17B COMBINING ACCENT

Ornamentation Chart. Included below is a list of common eighteenth-century ornaments and the combining sequences of characters from which they can be generated.

	1D19C STROKE-2 + 1D19D STROKE-3
	1D19C STROKE-2 + 1D1A0 STROKE-6 + 1D19D STROKE-3
	1D1A0 STROKE-6 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3
	1D19C STROKE-2 + 1D19C STROKE-2 + 1D1A0 STROKE-6 + 1D19D STROKE-3
	1D19C STROKE-2 + 1D19C STROKE-2 + 1D1A3 STROKE-9
	1D1A1 STROKE-7 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3
	1D1A2 STROKE-8 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3
	1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3 + 1D19F STROKE-5
	1D1A1 STROKE-7 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D1A0 STROKE-6 + 1D19D STROKE-3
	1D1A1 STROKE-7 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3 + 1D19F STROKE-5
	1D1A2 STROKE-8 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D1A0 STROKE-6 + 1D19D STROKE-3
	1D19B STROKE-1 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3
	1D1A0 STROKE-6 + 1D188 MUSICAL SYMBOL COMBINING SMEAR
	1D19B STROKE-1 + 1D19C STROKE-2 + 1D19C STROKE-2 + 1D19D STROKE-3 + 1D19E STROKE-4
	1D19C STROKE-2 + 1D19D STROKE-3 + 1D19E STROKE-4

13.2 Layout Controls (revision)

Controlling Ligatures

In some orthographies the same letters may either ligate or not, depending on the intended reading. To account for this, the semantics of the ZWNJ and ZWJ have been extended.

Section 13.2, Controlling Ligatures, page 318: the text is superseded by the following.

To allow for finer control over ligature formation, in Unicode 3.0.1 the definitions of the following characters have been broadened to cover ligatures as well as cursive connection:

U+200C ZERO WIDTH NON-JOINER

• The intended semantic is to break both cursive connections and ligatures in rendering.

U+200D ZERO WIDTH JOINER

• The intended semantic is to produce a more connected rendering of adjacent characters than would otherwise be the case, if possible. In particular:

  1. If the two characters could form a ligature, but do not normally, ZWJ requests that the ligature be used.
  2. Otherwise, if either of the characters could cursively connect, but do not normally, ZWJ requests that each of the characters take a cursive-connection form where possible.
     • In particular, if a character X on one side has a cursive form, and the other character Y does not, ZWJ requests that X take a cursive form.
  3. Otherwise, where neither a ligature nor cursive connection are available, the ZWJ has no effect.

In other words given three broad categories below, ZWJ requests that glyphs in the highest available category (for the given font) be used; ZWNJ requests that glyphs in the lowest available category (for the given font) be used:

1. unconnected
2. cursively connected
3. ligated

For those unusual circumstances where someone wants to forbid ligatures in a sequence XY, but promote cursive connection, the sequence X<zwj><zwnj><zwj>Y can be used. The <zwnj> breaks ligatures, while the two adjacent joiners cause the X and Y to take adjacent cursive forms (where they exist). Similarly, if someone wanted to have X take a cursive form but Y be isolated, then the sequence X<zwj><zwnj>Y could be used (as in previous versions of the Unicode Standard).

Examples. The following provide samples of desired renderings when the joiner or non-joiner are inserted between two characters. In the Arabic examples, the characters on the left side are in visual order already, but have not yet been shaped.

 Sample Display Actions

	none
1.	or
2.
3.
4.

Implementation Notes. For modern font technologies, such as OpenType or AAT, font vendors should add ZWJ to their ligature mapping tables as appropriate. Thus where a font had a mapping from "f" + "i" to , the font designer should add the additional mapping from "f" + ZWJ + "i" to . On the other hand, ZWNJ will normally have the desired effect naturally for most fonts without any change, since it simply obstructs the normal ligature/cursive connection behavior. As with all other alternate format characters, fonts should use an invisible zero-width glyph for representation of both ZWJ and ZWNJ.

Current Arabic shaping algorithms should need no change; optional ligatures just would not be promoted by ZWJ, but current text should not be affected. The reason is that the current use of ZWJ between characters that normally cursively connect was redundant in previous versions of Unicode and should occur in very few instances. (As a matter of fact, with bad implementations of ZWJ or with unsupported ZWJ, the cursive connection would actually be broken.)

13.7 Tag Characters

Tag Characters: U+E0000–U+E007F

The characters in this block provide a mechanism for language tagging in Unicode plain text. The characters in this block are reserved for use with special protocols. They are not to be used in the absence of such protocols, or with protocols that provide alternate means for language tagging, such as markup. The requirement for language information embedded in plain text data is often overstated. See Section 5.11, Language Information in Plain Text in The Unicode Standard, Version 3.0.

This block encodes a set of 95 special-use tag characters to enable the spelling out of ASCII-based string tags using characters which can be strictly separated from ordinary text content characters in Unicode. These tag characters can be embedded by protocols into plain text. They can be identified and/or ignored by implementations with trivial algorithms because there is no overloading of usage for these tag characters--they can only express tag values and never textual content itself.

In addition to these 95 characters, one language tag identification character and one cancel tag character are also encoded. The language tag identification character identifies a tag string as a language tag; the language tag itself makes use of RFC 1766 language tag strings spelled out using the tag characters from this block.

Four terms (tagging, annotation, out-of-band and in-band) which are used in special senses here are defined in the Glossary.

Syntax for Embedding Tags

Tag Identification. The tag identification character is used as a mechanism for identifying tags of different types. In the future, this could enable multiple types of tags embedded in plain text to coexist.

Tag Termination. No termination character is required for the tag itself, because all characters that make up the tag are numerically distinct from any non-tag character. A tag terminates either at the first non-tag character (i.e. any other normal Unicode value), or at next tag identification character. A detailed BNF syntax for tags is listed below.

Language Tags. A string of tag characters prefixed by U+E0001 LANGUAGE TAG is specified to constitute a language tag. Furthermore, the tag values for the language tag are to be spelled out as specified in RFC 1766, making use only of registered tag values or of user-defined language tags starting with the characters "x-".

For example, consider embedding a language tag for Japanese. The Japanese tag from RFC 1766 is "ja" (composed of ISO 639 language id) or, alternatively, "ja-JP" (composed of ISO 639 language id plus ISO 3166 country id). Since RFC 1766 specifies that language tags are not case significant, it is recommended that for language tags, the entire tag be lowercased before conversion to tag characters.

Thus the entire language tag in its "ja-JP" would be converted to the tag characters as follows:

U+E0001 U+E006A U+E0061 U+E002D U+E006A U+E0070

The language tag, in its shorter, "ja" form, would be expressed as follows:

U+E0001 U+E006A U+E0061

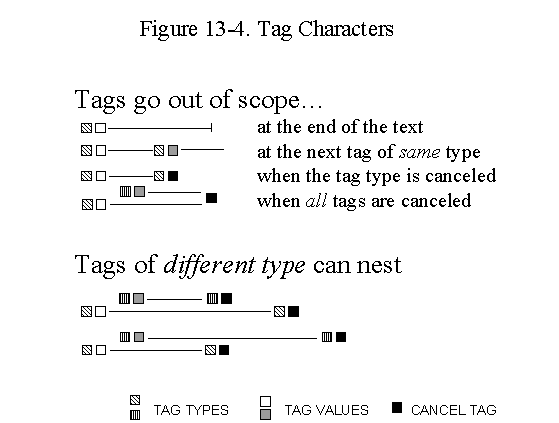

Tag Scope and Nesting. The value of an established tag continues from the point the tag is embedded in text until either:

A. The text itself goes out of scope, as defined by the application. (E.g. for line-oriented protocols, when reaching the end-of-line or end-of-string; for text streams, when reaching the end-of-stream; etc.)

B. The tag is explicitly canceled by the U+E007F CANCEL TAG character.

Tags of different types can have interdigitating scope, but not hierarchical scope. In effect, tags of different types completely ignore each other, so that the use of language tags can be completely asynchronous with the use of future tag types.

Canceling Tag Values. The main function of CANCEL TAG is to make possible operations such as blind concatenation of strings in a tagged context without the propagation of inappropriate tag values across the string boundaries. There are two uses of CANCEL TAG. To cancel a tag value of a particular type, prefix the CANCEL TAG character with the tag identification character of the appropriate type. For example, the complete string to cancel a language tag is:

U+E0001 U+E007F

The value of the relevant tag type returns to the default state for that tag type, namely: no tag value specified, the same as untagged text. To cancel any tag values of any type which may be in effect, use CANCEL TAG without a prefixed tag identification character.

Note: Currently there is no observable difference in the two uses of CANCEL TAG, because only one tag identification character (and therefore one tag type) is defined. Inserting a bare CANCEL TAG in places where only the language tag needs to be canceled, could lead to unanticipated side effects if this text were to be inserted in the future into a text that supports more than one tag type.

Working With Language Tags

Avoiding Language Tags. Because of the extra implementation burden, language tags should be avoided in plain text unless language information is required and it is known that the receivers of the text will properly recognize and maintain the tags. However, where language tags must be used, implementers should consider the following implementation issues involved in supporting language information with tags and decide how to handle tags where they are not fully supported. This discussion applies to any mechanism for providing language tags in a plain text environment.

Higher-Level Protocols. Language tags should also be avoided wherever higher-level protocols, such as a rich-text format, HTML or MIME, provide language attributes. This practice prevents cases where the higher-level protocol and the language tags disagree. See Unicode Technical Report #20, "Unicode in XML and other Markup Languages".

Effect of Tags on Interpretation of Text. Implementations that support language tags, may need to take them into account for special processing, such as hyphenation or choice of font. However, the tag characters themselves have no display and do not affect line breaking, character shaping or joining, or any other format or layout properties. Processes interpreting the tag may choose to impose such behavior based on the tag value that it represents.

Display. Characters in the tag character block have no visible rendering in normal text and the language tags themselves are not displayed. This choice may not require modification of the displaying program, if the fonts on that platform have the language tag characters mapped to zero-width, invisible glyphs. For debugging or other operations which must render the tags themselves visible, it is advisable that the tag characters be rendered using the corresponding ASCII character glyphs (perhaps modified systematically to differentiate them from normal ASCII characters). But the tag character values are chosen so that the tag characters will be interpretable in most debuggers even without display support.

Processing. Sequential access to the text is generally straightforward. If language codes are not relevant to the particular processing operation, then they should be ignored. Random access to stateful tags is more problematic. Because the current state of the text depends upon tags previous to it, the text must be searched backward, sometimes all the way to the start. With these exceptions, tags pose no particular difficulties as long as no modifications are made to the text.

Range Checking for Tag Characters. Tag characters are encoded in Plane 14 to support easy range checking. The following C/C++ source code snippets show efficient implementations of range checks for characters E0000 to E007F expressed in each of the three significant Unicode encoding forms. Range checks allow implementations that do not want to support these tag characters to efficiently filter for them.

Range check expressed in UTF-32:

if ( ((unsigned)  *s)  - 0xE0000  <= 0x7F  )

if ( ( *s == 0xDB40 ) && ( ((unsigned)*(s+1)) - 0xDC00  <= 0x7F ) )

if ( ( *s == 0xF3 ) && ( *(s+1) == 0xA0 ) && ( ( *(s+2) & 0xFE ) == 0x80 ) )

Range check expressed in UTF-32:

if ( ((*s) & 0xEFF80)  == 0xE0000 )

if ( ( *s == 0xDB40 ) && ( *(s+1) & 0xDC80) == 0xDC00 )

Editing and Modification. Inline tags present particular problems for text changes, because they are stateful. Any modifications of the text are more complicated, as those modifications need to be aware of the current language status and the <start>...<end> tags must be properly maintained. If an editing program is unaware that certain tags are stateful and cannot process them correctly, then it is very easy for the user to modify text in ways that corrupt it. For example, a user might delete part of a tag or paste text including a tag into the wrong context.

Dangers of Incomplete Support. Even programs that do not interpret the tags should not allow editing operations to break initial tags or leave tags unpaired. Unpaired tags should be discarded upon a save or send operation.

Nonetheless, malformed text may be produced and transmitted by a tag-unaware editor. Therefore, implementations that do not ignore language tags must be prepared to receive malformed tags. On reception of a malformed or unpaired tag, language tag-aware implementations should reset the language to NONE, and then ignore the tag.

Unicode Conformance Issues

The presence of a well-formed tag is no guarantee that the data is correctly tagged. For example, an application could have erroneously labeled French data as Spanish.

Implementations of Unicode which already make use of out-of-band mechanisms for language tagging or "heavy-weight" in-band mechanisms such as XML or HTML will continue to do exactly what they are doing and will ignore the tag characters completely, and may prohibit their use in order to prevent conflict with the equivalent markup.

Tag Syntax Description

1. Semantic constraints are specified by rules in the form of an assertion specified between double braces; the variable $$ denotes the string consisting of all terminal symbols matched by the this non-terminal.

Example: {{ Assert ( $$[0] == '?' ); }}

Meaning: The first character of the string matched by this non-terminal must be '?'

Example: IsRFC1766LanguageIdentifier ( tag-argument )

Meaning: tag-argument is a valid RFC1766 language identifier

Example: TAG('-')

Meaning: TAG HYPHEN-MINUS

Example: TAG([A-Z])

Meaning: TAG LATIN CAPITAL LETTER A ... TAG LATIN CAPITAL LETTER Z

Example: '${TAG CANCEL}'

Meaning: character literal whose code value is U+E007F

Formal Tag Syntax

tag                     :   language-tag
                        |   cancel-all-tag
                        ;

language-tag            :   language-tag-introducer language-tag-argument
                        ;

language-tag-argument   :   tag-argument
              {{ Assert ( IsRFC1766LanguageIdentifier ( $$ ); }}
                        |   tag-cancel
                        ;

cancel-all-tag          :   tag-cancel
                        ;

tag-argument            :   tag-character+
                        ;

tag-character           :   { c : c in
              TAG( { a : a in printable ASCII characters or SPACE } ) }
                        ;

language-tag-introducer :   '${TAG LANGUAGE}'
                        ;

tag-cancel              :   '${TAG CANCEL}'
                        ;

6 Code Charts

The following code charts contain the characters added in Unicode 3.1. They are shown together with the characters that were part of Unicode 3.0. New characters are shown on a yellow background in these code charts.

• Greek and Coptic
• Old Italic
• Gothic
• Deseret
• Byzantine Musical Symbols
• Musical Symbols
• Mathematical Alphanumeric Symbols
• CJK Unified Ideographs Extension B
• CJK Compatibility Ideographs Supplement
• Tag Characters

Preliminary Code Charts Notice: The files containing the preliminary version of the Unicode 3.1 code charts will be updated from time to time as Unicode 3.1 becomes finalized. Each preliminary chart carries a revision date. Once Unicode 3.1 has been released, the final set of charts will be located in a different location from the one used for the preliminary charts. The final version of this document will point to the locations of the final code charts for Unicode 3.1, once they have been produced. At the time of this writing, final fonts for the CJK Unified Extension B were not available. It is possible that final completion of the CJK charts will be delayed until shortly after the formal publication of Version 3.1.

7 Errata

This article contains errata rolled up since the publication of The Unicode Standard, Version 3.0. These errata are listed in the table below, organized by date and category.

An online glossary was created that contained the contents the glossary found in The Unicode Standard, Version 3.0. Since that time, this glossary has been updated. Global changes have been made to the language to clarify the distinction between code point and code unit. The following definitions have been added: Annotation, BMP Code Point, BMP Character, Code Position, Code Unit, In-band, Noncharacter, Out-of-band, Plane, Row, Supplementary Code Point, Supplementary Character, Supplementary Planes, Surrogate Code Point, Surrogate Character, Tagging, Unicode Sequence Identifier.

8 Unicode Character Database Changes

The main change to the Unicode Character Database for Unicode 3.1 is the extension of the data files to cover the character repertoire addition. This most importantly impacts UnicodeData.txt, LineBreaks.txt, and EastAsianWidth.txt, each of which has been extended to cover all the newly encoded characters. Also, an updated informative NamesList.txt file is provided to cover the new repertoire.

As of the Unicode 3.0.1 update, UnicodeData.txt already had entries for the user-defined characters beyond U+FFFF, but it is important to note that now UnicodeData.txt (and LineBreaks.txt and EastAsianWidth.txt) have many, many new entries for encoded characters making use of the five-hex-digit notation for the Unicode scalar values, e.g. 1D16E, 2F880, E0061, and so forth. Parsers of the Unicode Character Database files will need to be adjusted accordingly.

The format of UnicodeData.txt has not changed. However, the formats of LineBreaks.txt and EastAsianWidth.txt have been adjusted slightly; the name of the Unicode character is now appended in a comment field, instead of in a data field, so that it will be clear that the normative source of the Unicode character name is only UnicodeData.txt.

Blocks.txt has been extended to cover the new blocks from Planes 1, 2, and 14.

The notes to SpecialCasing.txt have been updated, and a special casing rule has been added for i/I in Azeri.

The notes to CaseFolding.txt have been greatly extended, and the classification used for the folding has been modified. New symbols for the folding partition are in use, so check this file carefully before feeding it to an automated process. There are also repertoire additions to cover Deseret case folding.

The supplementary property list file, PropList.txt, has been changed rather extensively. The format has been modified, to make it easier to parse. Property specifications that were redundant with UnicodeData.txt have been removed. Also, the formerly informative status of this file has been changed. The UTC has now reviewed the contents of PropList.txt and has incorporated it formally into the normative set of data files in the Unicode Character Database. Further changes and updates to this file will be subject to formal UTC review and control, as for all other normative data files.

Data File Format

The first field of each line in the Unicode Character Database files represents a code point. The remaining fields are properties associated with that code point. The format for these files has been extended in Unicode 3.1 to allow the specification of a range of code points. Each code point in the range has the associated properties. Such ranges are specified with "..". For example:

0000..007F; Basic Latin
0080..00FF; Latin-1 Supplement

1680     ; White_space; # Zs;     1; OGHAM SPACE MARK
2000..200B; White_space; # Zs;    12; EN QUAD..

The Blocks.txt file has been changed to use this format.

New Normative Properties

All of the General Category properties plus the case mappings in UnicodeData.txt and SpecialCasing.txt are now normative.

9 Relation to ISO/IEC 10646

ISO/IEC 10646 is a multi-part standard. Part 1, published as ISO/IEC 10646-1:2000(E), covers the architecture and Basic Multilingual Plane. Part 2, which has been approved in its final ballot, covers the supplementary planes. Unicode 3.1 adds all the supplementary characters that will be part of ISO/IEC 10646-2. Unicode 3.1 introduces the terms plane, BMP, and supplementary plane to help align terminology with ISO/IEC 10646.

The Unicode Standard is not split into parts corresponding to those of ISO/IEC 10646. The parts of 10646 have independent publication schedules. Because there are relations between characters that are processed for separate parts of 10646 but need to be treated consistently in the Unicode Standard, it is occasionally necessary to deviate from strict synchronization to a given release of 10646.

The Unicode Consortium and ISO/IEC JTC1/SC2/WG2 are committed to maintaining the synchronization between the two standards. Unicode 3.1 adds two BMP characters that are part of the first amendment to ISO/IEC 10646-1:2000, which is in final stages of development. See Article 1, Description, for more information about these two characters and the reason for their inclusion into Unicode 3.1.

The upcoming amendment of 10646-1 will also restrict the repertoire of 10646 so that it will be formally compatible with UTF-16.

10 References and Sources

_______, 1961. Gradual Sacrosanctae Romanae. Parisiis: Desclie.

_______, "Music", in New Encyclopedia Britannica. 15th ed. Chicago: Encyclopedia Britannica.

Alvestrand, Harald. "Tags for the Identification of Languages", RFC 1766.

Balaban, Mira, et al. 1992. Understanding Music with AI: Perspectives on Music Cognition. Menlo Park: AAAI Press.

Bonfante, Larissa. 1996. "The scripts of Italy", in Peter T. Daniels and William Bright, eds. The world's writing systems. New York; Oxford: Oxford University Press. ISBN 0-19-507993-0.

Cristofani, Mauro. 1978. "L'alfabeto etrusco: popoli e civiltà dell'Italia antica", in Lingue e dialetti dell'Italia antica a cura di Aldo Larosdocimi, VI, 401-428. Roma: Bretscheider.

Ebbinghaus, Ernst. 1996. “The Gothic alphabet”, in Peter T. Daniels and William Bright, eds. The world’s writing systems. New York; Oxford: Oxford University Press. ISBN 0-19-507993-0

ELOT 1373. The Greek Byzantine Musical Notation System. Athens, 1997.

Faulmann, Carl. 1990 (1880). Das Buch der Schrift. Frankfurt am Main: Eichborn. ISBN 3-8218-1720-8

Gordon, Arthur E. 1983. Illustrated Introduction to Latin Epigraphy. Berkeley: UC Press.

Haarmann, Harald. 1990. Universalgeschichte der Schrift. Frankfurt/Main; New York: Campus. ISBN 3-593-34346-0

Heussenstamm, George. 1987. Norton Manual of Music Notation. New York: W.W. Norton.

Ion, Patrick and Robert Miner, Eds., Mathematical Markup Language (MathML™) 1.01 Specification<http://www.w3.org/TR/REC-MathML/>

Kennedy, Michael. 1985. Oxford Dictionary of Music. New York: Oxford University Press.

Ludlow, Daniel H., ed. [s.d.] "The Deseret Alphabet" in Encyclopedia of Mormonism. New York: Macmillan Reference.

Marinetti, Anna. 1985. Le iscrizione sudpicene I. Testi. Firenze: Leo S. Olschki.

Monson, Samuel C. 1953 Representative American Phonetic Alphabets. New York: Columbia University. Ph.D. dissertation.

Multipurpose Internet Mail Extensions (MIME). Part One: Format of Internet Message Bodies, N. Freed, N. Borenstein, RFC 2045, November 1996, . Part Two: Media Types, N. Freed, N. Borenstein, RFC 2046, November 1996. Part Three: Message Header Extensions for Non-ASCII Text, K. Moore, RFC 2047, November 1996. Part Four: Registration Procedures, N. Freed, J. Klensin, J. Postel, RFC 2048, November 1996. Part Five: Conformance Criteria and Examples, N. Freed, N. Borenstein, RFC 2049, November 1996.

Ottman, Robert W. 1970. Elementary Harmony: Theory and Practice. 2nd ed. Englewood Cliffs: Prentice-Hall.

Parlangèli, O. 1960. Studi Messapici. Milano.

Randel, Don Michael, ed. 1986. New Harvard Dictionary of Music, Cambridge: Harvard Univ. Press.

Rastall, Richard. 1983. Notation of Western Music: An Introduction. London: Dent.

Read, Gardner. 1964. Music Notation: A Manual of Modern Practice, Boston: Allyn and Bacon.

Sampson, Geoffrey. 1985. Writing systems: a linguistic introduction. Stanford: Stanford University Press. ISBN 0-8047-1756-7

Stone, Kurt. 1980. Music Notation in the Twentieth Century: A Practical Guidebook. New York: W.W. Norton.

Copyright © 2001 Unicode, Inc. All Rights Reserved. The Unicode Consortium makes no expressed or implied warranty of any kind, and assumes no liability for errors or omissions. No liability is assumed for incidental and consequential damages in connection with or arising out of the use of the information or programs contained or accompanying this technical report.

Unicode and the Unicode logo are trademarks of Unicode, Inc., and are registered in some jurisdictions.
